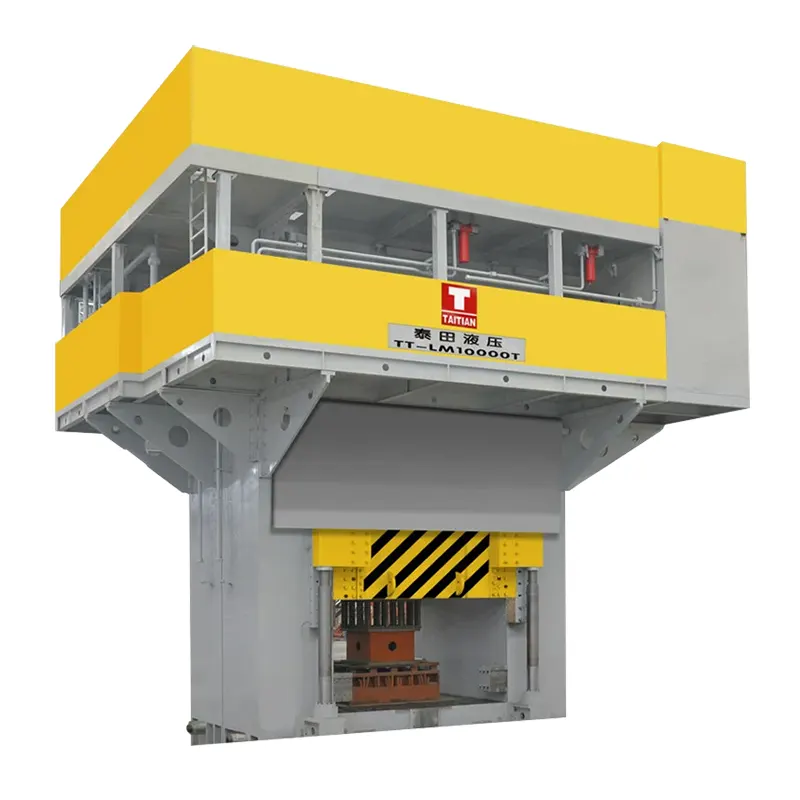

10000T Hydraulic Forging Press For Wheel Rim

As the professional manufacturers, we would like to provide you TAITIAN 10000T Hydraulic Forging Press For Wheel Rim. TAITIAN offers Hydraulic forging Press included hydraulic cold forging press and hydraulic hot forging press, it is used for forging aluminium alloy wheel hub, magnesium alloy wheel hub and bicycle components and other small metal parts. The capacity of Taitian cold / hot forging press can be up to 40000Tons, adopts Taiwan technology, the speed and pressure has been well adjustable by using servo driven control system.

Main Specification:

We are able to custom manufacture hydraulic cold forging press machine/hot forging presses in a wide range of sizes and capacities as per customers’requirement.

Characteristics:

1) The 10000T Hydraulic Forging Press For Wheel Rim is designed through finite element structural analysis and optimization to assure high strength and rigidity.

2) Wheel Hub Forging Press with advanced design of one main cylinder and two lifting cylinders fully ensures a good balance.

3) Integrated cartridge valve is introduced for flexible and reliable movement without oil leakage.

4) Cold Forging Press Machine-Siemens PLC and Schneider electric components provide the press with stable performance.

5) Hydraulically safety loop and locking device on the top dead center (T. D. C. ) assure high safety.

6) Hydraulic Cold Forging Press adopts a high-frequency response proportional servo control system, equipped with a quick release valve and a high-frequency response plug-in valve, pressure level control, and improved response speed, realizing high-frequency forging.

Optional:

Energy saving accumulator;

Automatic loading and unloading robot;

Front moving bolster;

Forced cooling system of oil temperature;

Other customized devices.

Applications:

10000T Hydraulic Forging Press For Wheel Rim is specially used for large-scale raw material free forging or die forging, applicable to processes such as upsetting, forging, punching, stretching, expanding, shaping, and straightening. It is mainly used in fields such as power equipment, shipbuilding and petrochemicals, metallurgical equipment, machinery and machine tools, military and nuclear energy.

Hydraulic Control System

Hydraulic control system takes high precision logic valving system as standard. Pipeline configuration is simple and clear, making maintenance easy. Pipeline connection way preferentially adopts flange joint to avoid oil leakage.

All motors, pumps and pipes are fitted based on advanced Taiwan technology to achieve shock-resistance.

Electric Control System

Electric box is featured with dustproof, waterproof and oil proof. Adopt Schneider electric units to ensure high quality. All units to ensure high quality. All units have labels, so it's clear to identify and easy to maintain.

Taitian Hydraulic is an ISO, SGS, CE and CSA certified company, we offer you various Hydraulic Cold Forging Press and other series of composite molding presses. contact us and get a detail on our machine.
