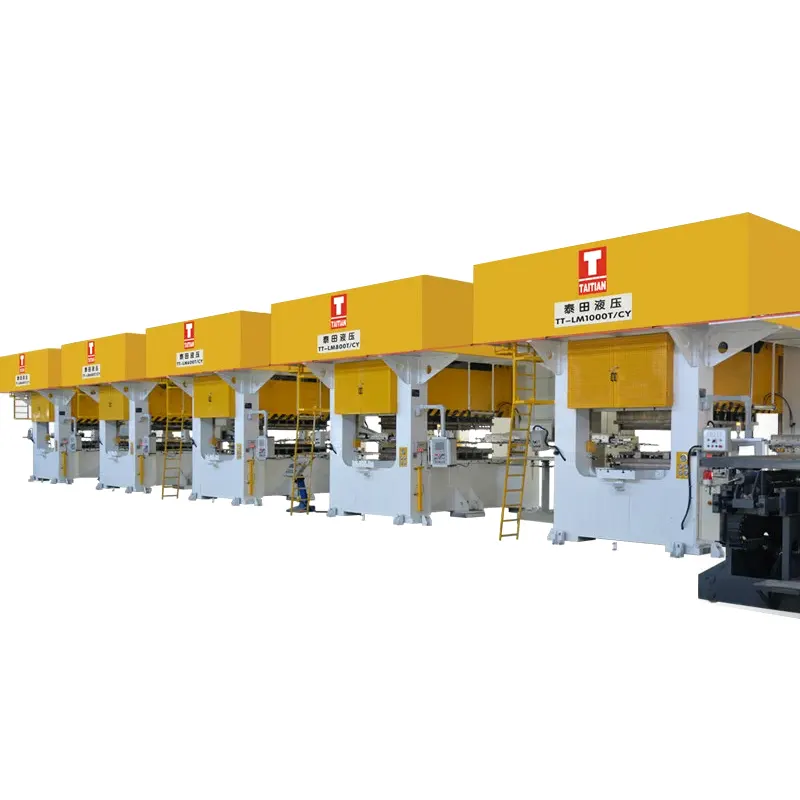

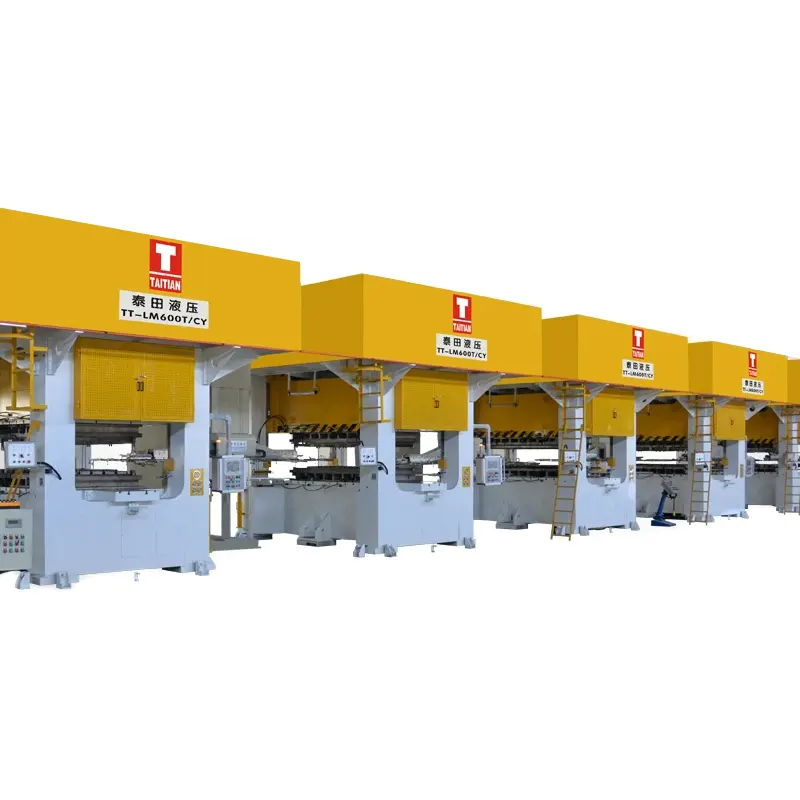

1000T Hydraulic Deep Drawing Press

You can rest assured to buy TAITIAN 1000T Hydraulic Deep Drawing Press from our factory and we will offer you the professional 7*24 service and timely delivery. TAITIAN Deep Drawing Press also called metal stamping press, it is used for deep drawing,stamping,punch of metal sheet for automobile, kitchenware and household appliance industries.Taitian deep drawing press adopts Taiwan technology,the speed and pressure has been well adjutable by using servo driven control system.

Main Features

1. 1000T Hydraulic Deep Drawing Press with H frame structure and removable tie bar, strong machine rigidity, easy to install.

2. Metal Stamping Press Machine use eight side guiding system, high precision, strong anti-side load.

3. All H-Frame Deep Drawing Hydraulic Press systems are all installed on the upper platform to ensure oil tank/main cylinder/oil pump/valve block are absolutely compacted, with advantage of low shock,short pipeline and low noise.

4. Stamping circle time is around 4 seconds/circle, deep drawing circle time will be around 6 seconds/circle

5. Metal drawing press machine with Electric die changing trolley.

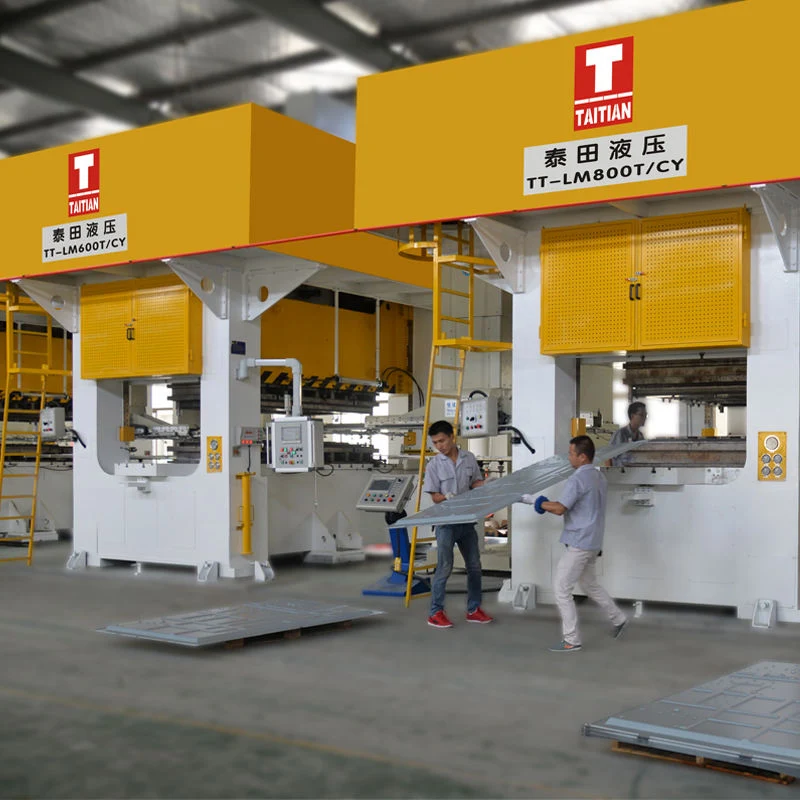

6. Hydraulic press machine Suitable robot for loading and unloading can be equipped according to customers’products size.

Applications:

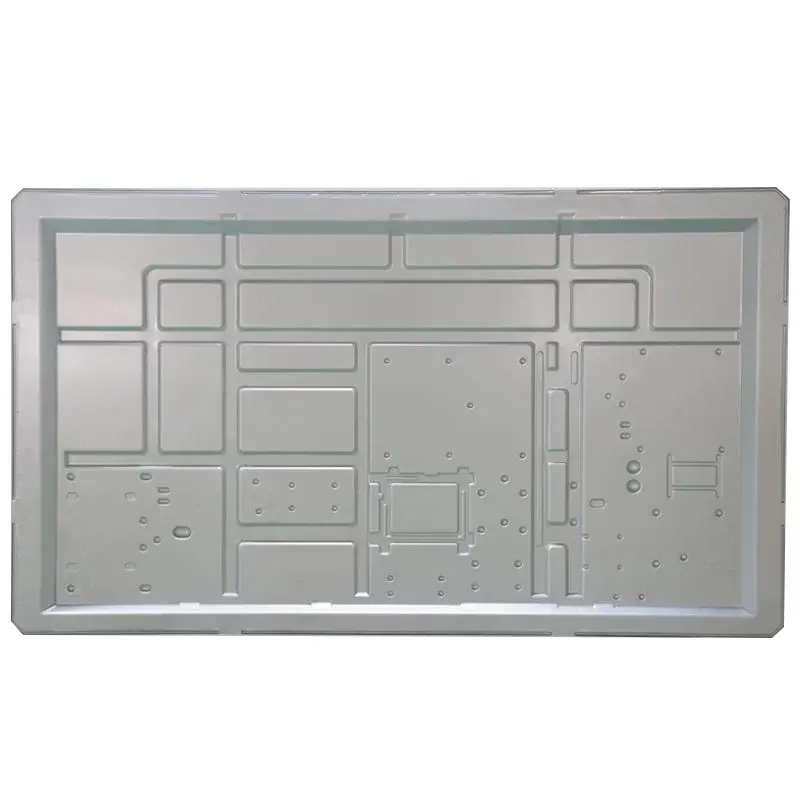

Apply for stamping /drawing TV rear panel,as well as other hardware’s drawing and short stroke stamping process.

Options:

▶ Moving Bolster / Die Change Trolley

▶ Lower bolster moving out

▶ Robot loading and unloading system

▶ Stamping Dampers for shock proof while stamping

Hydraulic Control System

Hydraulic control system takes high precision logic valving system as standard. Pipeline configuration is simple and clear, making maintenance easy. Pipeline connection way preferentially adopts flange joint to avoid oil leakage.

All motors, pumps and pipes are fitted based on advanced Taiwan technology to achieve shock-resistance.

Electric Control System

Electric box is featured with dustproof, waterproof and oil proof. Adopt Schneider electric units to ensure high quality. All units to ensure high quality. All units have labels, so it's clear to identify and easy to maintain.

Do you want to buy 1000T Hydraulic Deep Drawing Press with Low Prices? Taitian is definitely your best choice. Taitian Hydraulic is an ISO, SGS, CE and CSA certified company, we offer you various hydraulic press machine and other series of composite molding presses. contact us and get a detail on our machine.
